01 / Scope of Work
Work modelled, designed or delivered.
- 01

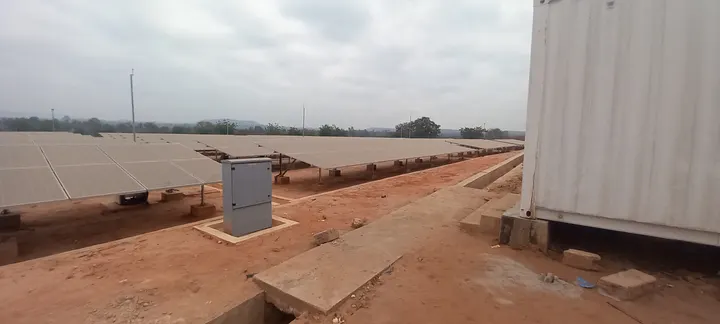

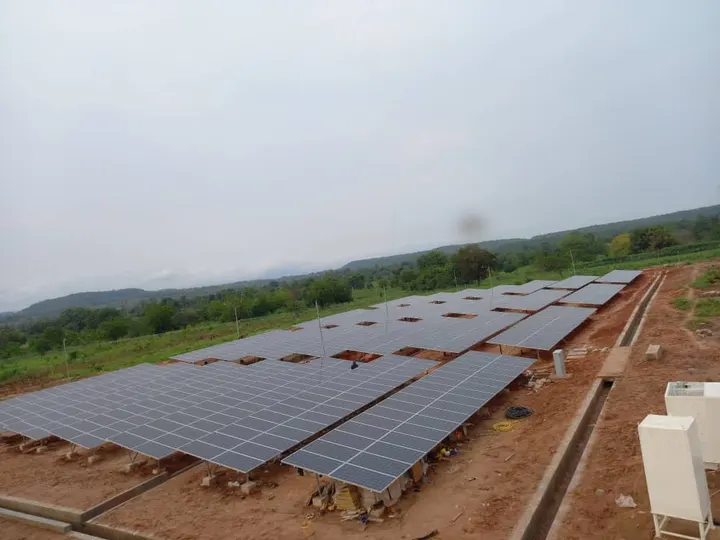

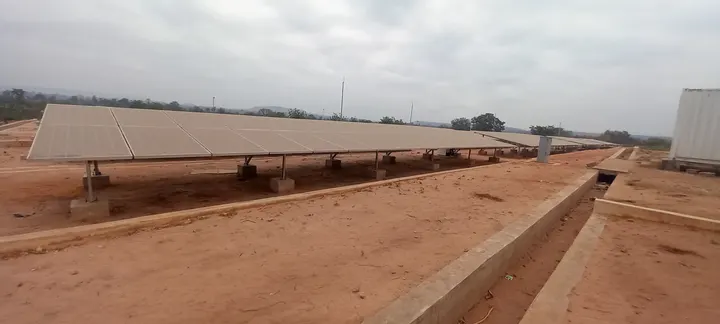

Supervise generation-site construction activities including site marking, fencing layout, PV plinth preparation, civil work monitoring and PV structure installation.
- 02
Coordinate installation of 952 PV modules, eight 50 kW PV inverters, PVDB, LVSG and SCADA communication infrastructure.
- 03
Support integration of 972 kWh BESS system with associated power conversion, communication and energy management systems.
- 04
Supervise installation of 1 MVA step-up transformer for grid interface and 500 kVA step-down transformer for system utilisation.
- 05

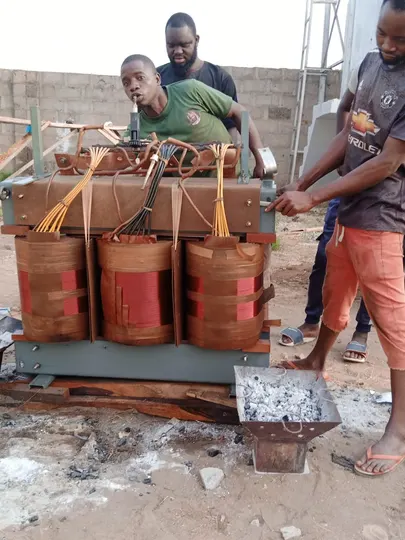

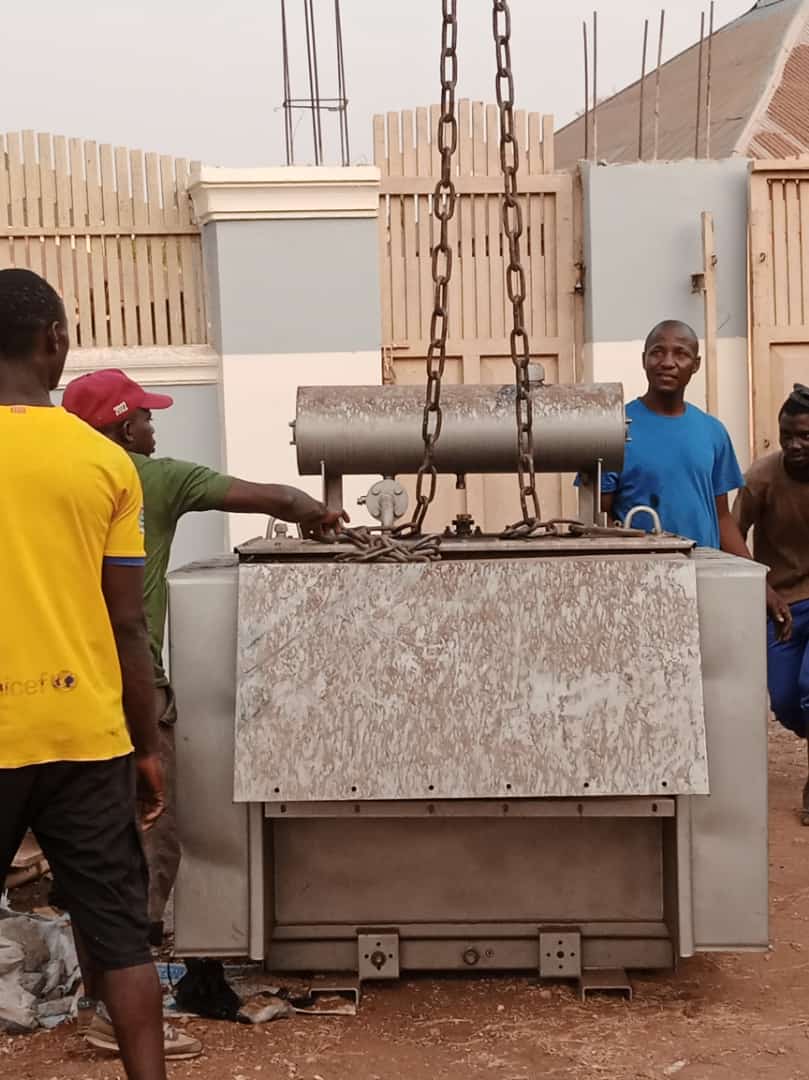

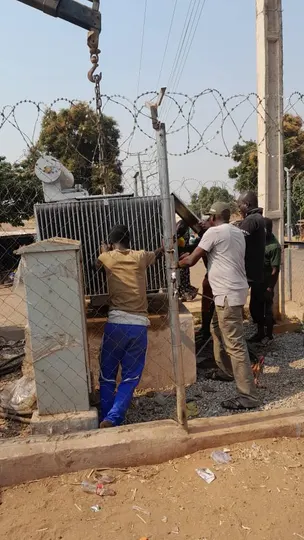

Coordinate transformer rehabilitation activities across five existing community transformers including inspection, servicing, moisture removal and restoration activities.
- 06
Supervise installation of transformer accessories including lightning arresters, gang isolators, earthing systems and associated protection equipment.
- 07
Monitor installation of armoured cables, DC cables, cable termination, cable management and industrial earthing systems.
- 08
Supervise contractor activities, quality inspections, electrical testing and technical documentation for project handover.
- 09
Support integration of solar PV, BESS and existing distribution infrastructure to restore reliable electricity supply to the community.
