Energy Systems AnalysisCompleted Technical Study

Erinjiyan Mini-Grid - Python Load Analysis & HOMER Pro Optimization

Integrated mini-grid demand and techno-economic study combining Odyssey customer-demand modelling, Python-based validation of an 8,760-hour annual load profile, and HOMER Pro hybrid-system simulation. The assessment covered 1,772 customer connections and evaluated PV, battery storage, diesel generation and grid support for a community demand of approximately 8.10 MWh/day.

Erinjiyan Mini-Grid - Python Load Analysis & HOMER Pro Optimization project visual

Project image

Location

Erinjiyan, Ekiti, Nigeria

Period

2026

01 / Scope of Work

Work modelled, designed or delivered.

  1. 01

    Reviewed and processed the Odyssey-derived annual community load profile covering 8,760 hourly records.

  2. 02

    Validated the annual dataset in Python for completeness, timestamps, missing values and system-demand consistency.

  3. 03

    Calculated system demand indicators including peak load, minimum load, average demand, annual energy consumption and load factor.

  4. 04

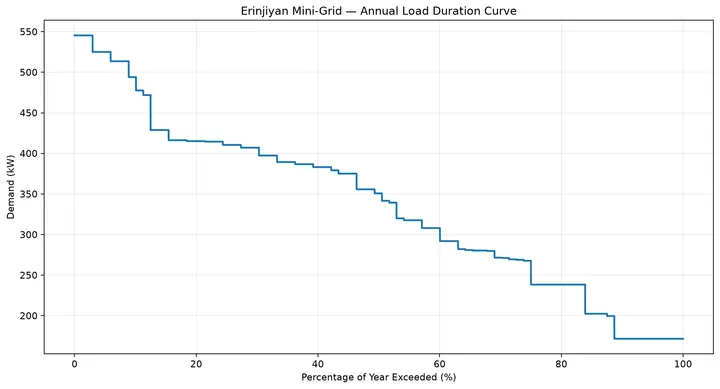

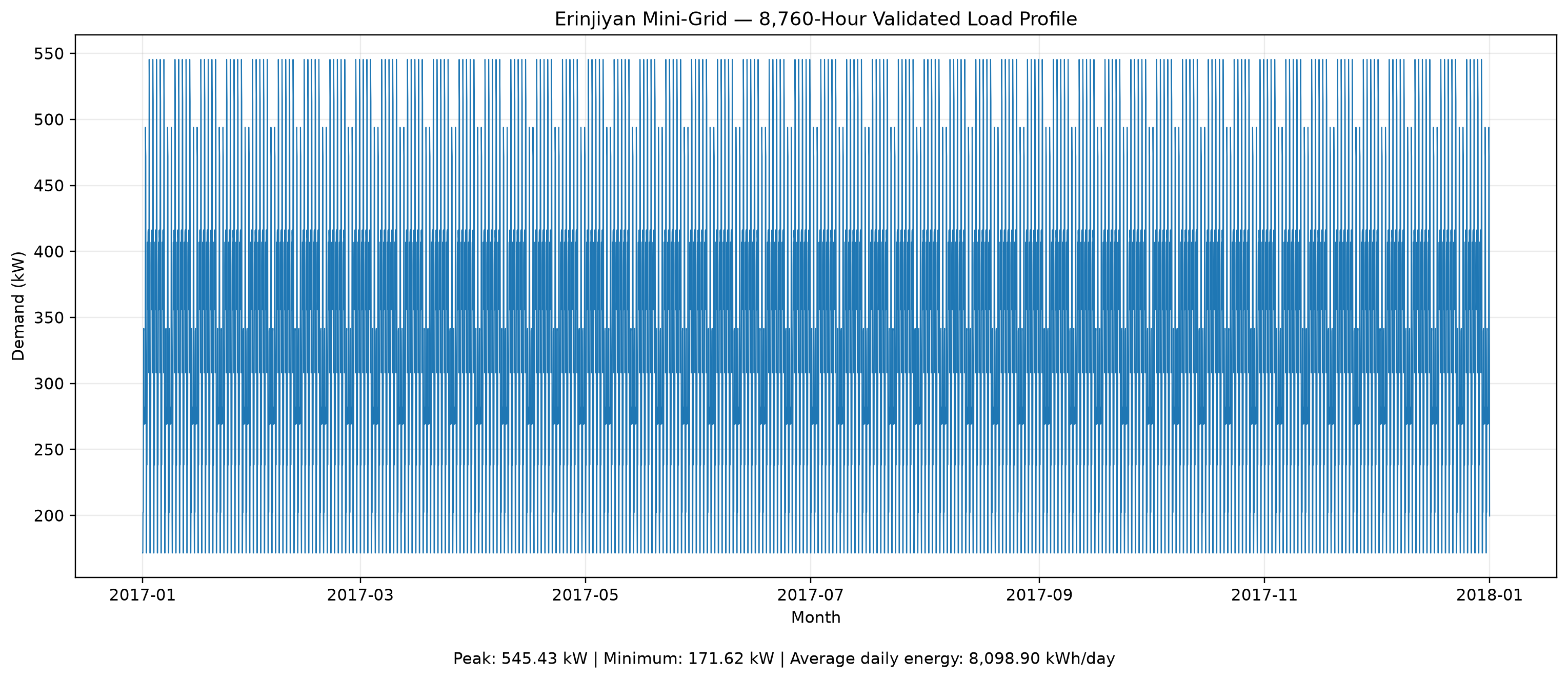

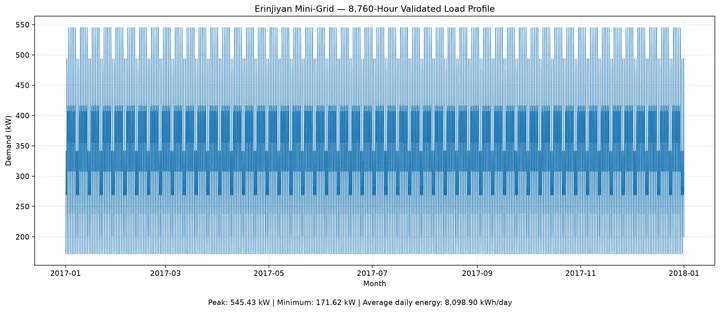

    Developed annual load-profile, average 24-hour demand and load-duration-curve visualizations.

  5. 05

    Configured and evaluated a hybrid PV, battery energy storage, diesel generator and grid-support architecture in HOMER Pro.

  6. 06

    Assessed energy production, storage operation, generator contribution, renewable penetration and system economics.

  7. 07

    Compared technical and financial simulation cases to support selection of a technically viable hybrid configuration.

02 / Results & Findings

Results from the project work.

  1. 01

    Validated all 8,760 hourly demand records with no missing or invalid system-load values.

    Modelled result

  2. 02

    Calculated a peak community demand of 545.43 kW, average demand of 337.45 kW and minimum demand of 171.62 kW.

    Modelled result

  3. 03

    Calculated average daily energy consumption of 8,098.90 kWh/day and annual demand of approximately 2.956 GWh.

    Modelled result

  4. 04

    Confirmed a community load factor of 61.87%, indicating sustained utilization across the daily demand cycle.

    Modelled result

  5. 05

    Evaluated a HOMER engineering case comprising approximately 2.2 MW of PV, 5.0 MWh of battery storage, a 610 kW diesel generator and a 606 kW converter.

    Modelled result

  6. 06

    The selected engineering simulation produced a total net present cost of approximately $3.14 million and a levelized cost of energy of $0.111/kWh under the modelled assumptions.

    Modelled result

Erinjiyan / Modelled demand & HOMER study

Demand shape & hybrid supply.

Explore the average daily demand and the selected system’s annual energy sources.

Explore the study Close study

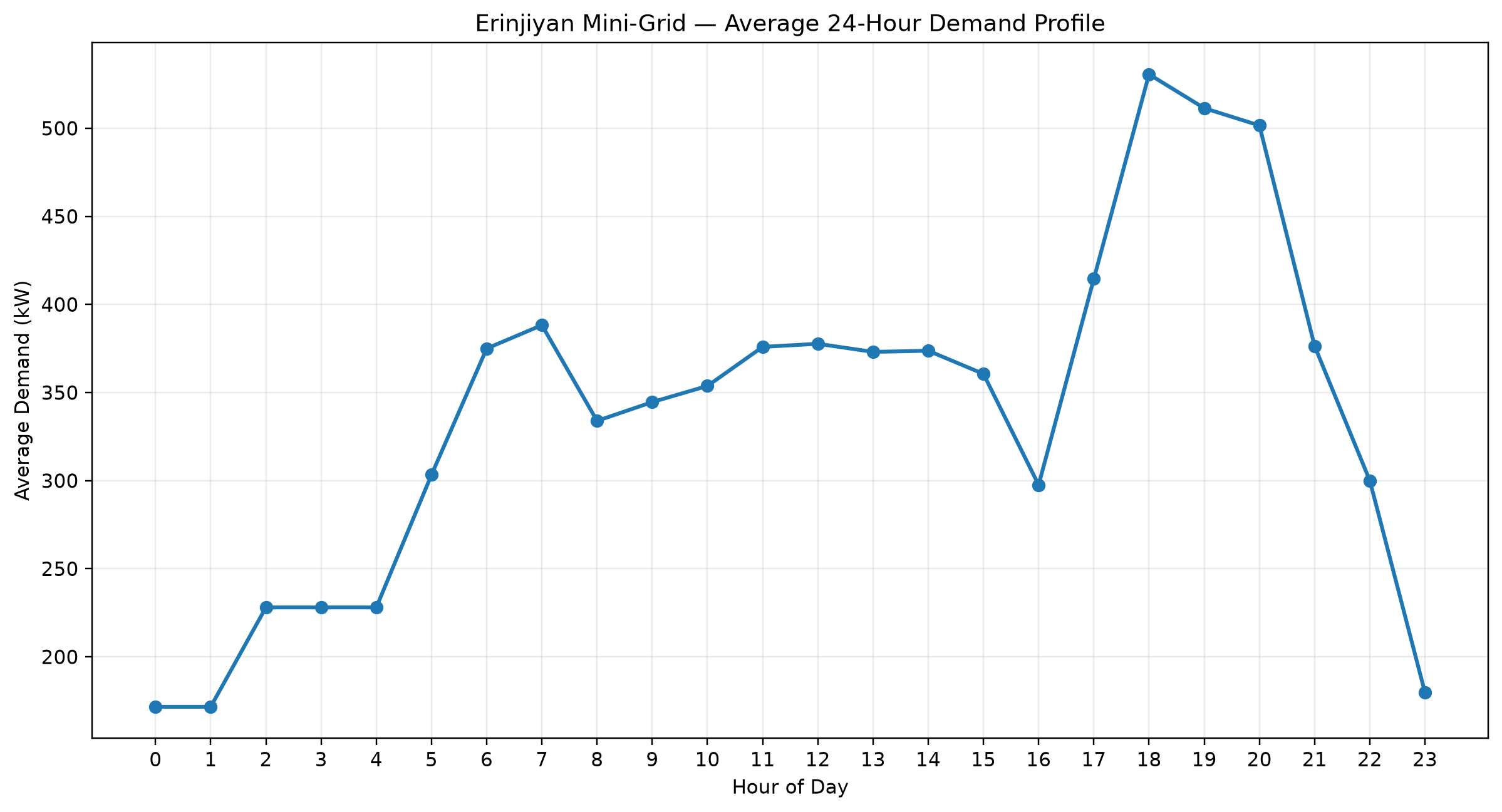

Daily demand shape

Follow demand through an average day.

8,760 modelled hoursAnnual peak 545.4 kW

Follow demand through an average day.Annual average by hour of day. Total demand, Residential, Commercial + productive, Anchor + public. Units: kW / average hour. Exact values for every sample are in the study data table below.020040060000:0004:0008:0012:0015:0019:0023:00kW / average hour

Select a sample or point to the chart to inspect it.

Engineering decision

Use the customer-group demand shape to assess solar alignment, evening supply and storage requirements.

Published demand profileView source
Model assumptions & limits
  • Each point averages the same hour over all 365 days of the modelled 8,760-hour profile. Input load values are already in kW.
  • The CSV uses a 2017 reference calendar. It is a modelled demand profile, not a record of measurements taken in 2017.
  • An average day smooths seasonal and day-to-day peaks. The annual peak shown above is from the complete profile, not the average-day curve.
  • Business demand combines commercial and productive uses. Services combine anchor and public loads. Only group totals are published; customer identifiers stay private.
View study data
Annual average by hour of day
SampleTotal demand (kW)Residential (kW)Commercial + productive (kW)Anchor + public (kW)
00:00171.6120.443.08.3
01:00171.6120.443.08.3
02:00228.0120.443.064.7
03:00228.0120.443.064.7
04:00228.0120.443.064.7
05:00303.3180.553.069.8
06:00375.0240.753.081.3
07:00388.2240.752.395.2
08:00333.9114.2115.5104.2
09:00344.684.2159.6100.8
10:00353.784.2168.8100.8
11:00375.984.2191.6100.2
12:00377.784.2187.6105.9
13:00373.184.2188.7100.2
14:00373.784.2190.499.1
15:00360.684.2183.093.4
16:00297.684.2123.090.3
17:00414.5240.782.791.1
18:00530.6361.174.395.2
19:00511.4361.166.084.3
20:00501.6361.166.074.5
21:00376.4240.771.064.7
22:00300.0240.751.18.3
23:00179.7120.451.18.3

Annual energy sources

See where the modelled energy comes from.

2,957.532 MWh servedReported unmet load: 0

See where the modelled energy comes from.Reported annual production. Annual production. Units: MWh / year. Exact values for every sample are in the study data table below.01000200030004000Solar PVDieselGrid purchasesMWh / year

Select a sample or point to the chart to inspect it.

Engineering decision

Read the production mix alongside served demand, excess generation and storage losses when assessing the selected hybrid architecture.

HOMER engineering reportPage 6
Model assumptions & limits
  • Annual source production totals 3,540.127 MWh. The report records 526.866 MWh of excess electricity.
  • Production share is a share of generated and purchased energy, not the renewable fraction of energy served. Storage and conversion losses separate production from consumption.
  • Served energy is the report’s AC primary-load consumption.
  • These are annual HOMER results for the selected configuration, not measured operating performance or an hourly dispatch forecast.
View study data
Reported annual production
SampleAnnual production (MWh)Production share (%)
Solar PV3,033.985.7
Diesel150.04.2
Grid purchases356.210.1

Sites & Work Packages

Work covered by each site.

Site-level scope recorded for this assignment.

01

Demand Modelling & Data Validation

Processed and validated the Odyssey-derived 8,760-hour demand dataset in Python and established the simulation baseline.

02

Load Characterization

Calculated peak demand, energy consumption and load factor, and developed annual, daily-average and load-duration visualizations.

03

Hybrid System Optimization

Evaluated PV, BESS, diesel generation and grid-support configurations in HOMER Pro for technical performance and lifecycle economics.

Technical Areas

Engineering methods and tools.

01

Python

Related projects

02

Pandas

Related projects

03

Matplotlib

Related projects

04

Odyssey

Related projects

05

HOMER Pro

Related projects

06

Load Profile Analysis

Related projects

07

Load Duration Curve

Related projects

08

Techno-Economic Optimization

Related projects

Related Disciplines

Mini-GridPythonHOMER ProOdysseyEnergy Data Analysis8760 Load ProfileLoad Duration CurveSolar PVBESSDiesel GenerationTechno-Economic AnalysisRenewable Energy

Project Evidence

Supporting project records.

Available for Erinjiyan Mini-Grid - Python Load Analysis & HOMER Pro Optimization: Engineering Drawings · Reports / PDFs. Open an image for a closer view or select a document to read it.

01

Engineering Drawings

3 items

02

Reports / PDFs

3 items

PDF

Reports / PDFs

Case 1 - Odyssey Community Load Assessment

Community demand assessment covering customer segmentation, load characteristics and the validated annual demand profile.

Jun 2026

View document
PDF

Reports / PDFs

Case 2 - HOMER Pro Engineering Simulation

Detailed HOMER Pro engineering simulation covering hybrid-system architecture, energy production, storage, generator operation and techno-economic performance.

Sep 2026

View document
PDF

Reports / PDFs

Case 3 - Optimized Client Simulation

HOMER Pro proposal case presenting the optimized hybrid-system configuration and associated financial indicators.

Sep 2026

View document
